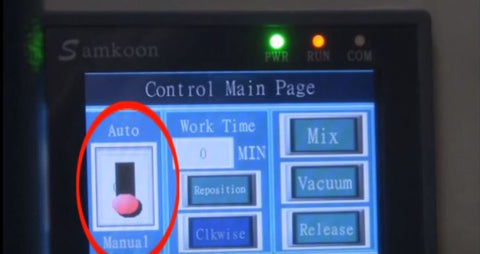

The DSVM-100 is a mini dual-shaft vacuum mixer. Helical ribbon mixing blades driven by planetary gears creates uniform mixture with minimum gas bubbles. The mixing speed can be programmed from 0~600 rpm. Built-in vacuum pump can vacuum the mixing container to -0.08MPa to remove gas bubble generated during mixing process. The DSVM-100 is manufactured according to UL and CSA standard.
The DSVM-100 is a high-quality mixing tool for preparing battery electrode paste and various ceramic materials requiring a vacuum atmosphere. It can be put inside a glovebox with inert gas atmosphere, such as Ar or N2.
- One year standard warranty with life-time support; contact for details.
- Damage due to improper storage condition or maintenance is not covered by warranty
- Longer time warranty available upon request
- Client reference available upon request
