Inert Gas Purification Glovebox System - Five-year Warranty

Inert Gas Purification Glovebox System - Five-year Warranty

This price is only available upon request. Contact us for a quote or fill the request form at the bottom of this page.


General Introduction

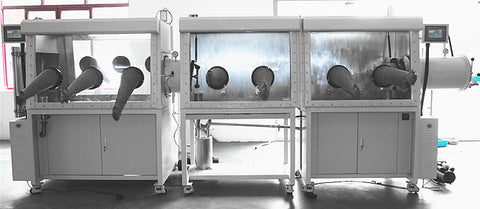

The Inert Gas Purification Glovebox System (MNT-IPGS) is designed to generate and maintain a working environment, in which O2 and H2O content can reach as low as 0.1 ppm.  The MNT-IPGS is an integrated turn-key workstation including  gloveboxes with stands, a vacuum pump, a solvent purification unit,  one or more water and oxygen purification units.

Features

  • Patented technology, water and oxygen content reaching <1ppm in less than 50 minutes;
  • System sealing performance: <0.005VOL%/H;
  • Unique and patented regeneration technology enabling long life term of purification material up to 15 years;

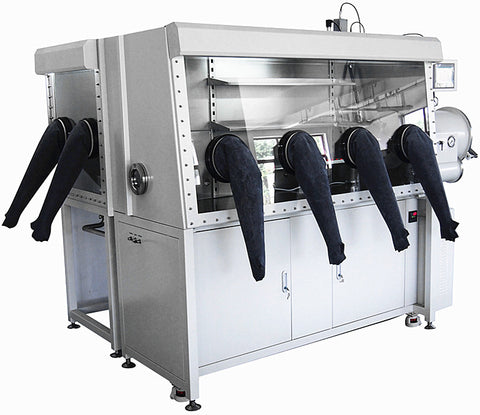

  • Customizable interface for physical/chemical vapor deposition (PVD&CVD) and atomic layer deposition (ALD)
  • Integrated peripheral: Embedded spin coater, heating chamber, industrial freezer, and quartz light diffuser etc.
  • Option of hinged front window for easy installation and maintenance
  • Option of rectangular antechamber
  • Equipped with a leaking inspection unit using oxygen method (-800 Pa);
  • Activated carbon for removing solvent chemical
  • Closed loop re-circulation and purification
  • Large antechamber: fully automatic antechamber purge

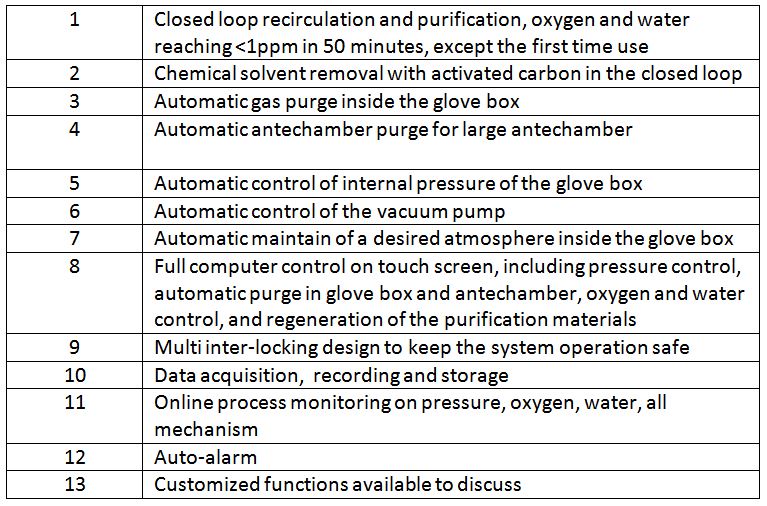

Standard Functions

Standard functions micronano tools inert gas purification glovebox

Standard Configurations

glovebox standard configurations micronanotools

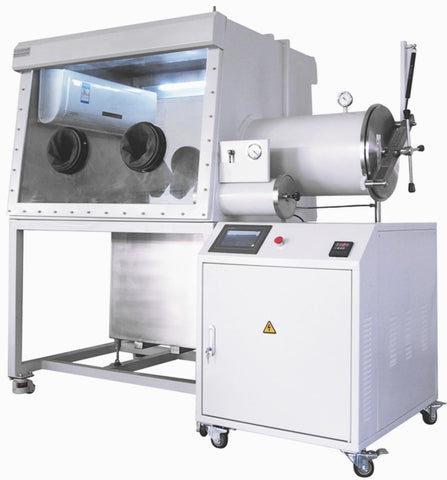

 Two module glovebox with purification device back of glove box Purification device of glovebox touch screen of glovebox

Optional configurations

glove box optional configurations micronano tools

Inert Gas Purification Glovebox System (MNT-IPGS) Models

Inert Gas Purification Glove box models micronano tools

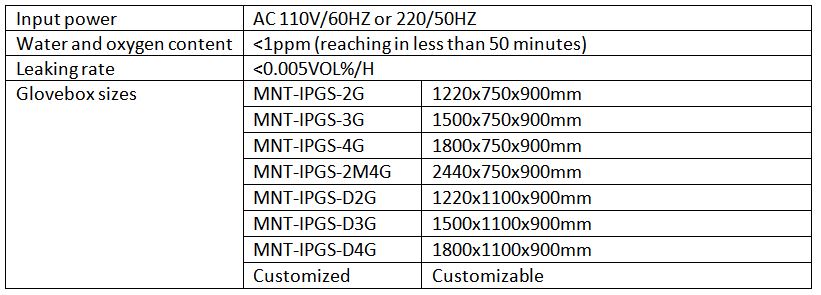

Technical specifications

Technical specification of Glovebox models micronano tools

Warranty

  • Five years standard warranty with life-time support for the whole inert gas purification glovebox system. Outsourced accessories are under one year standard warranty.

  • Damage due to improper storage condition or maintenance is not covered by warranty

  • Shipping and onsite installation services
