Rotatable Thermal Evaporating Coater MNT-TEC-1800

Rotatable Thermal Evaporating Coater MNT-TEC-1800

This price is only available upon request. Contact us for a quote or fill the request form at the bottom of this page.


General Introduction

The MNT-TEC-1800 is a compact, bench-top thermal evaporating coater designed with precision temperature control up to 1800 °C (3272 °F). Despite its small footprint, it offers full functionality and advanced features, including voltage and current feedback, a rotating sample stage for uniform substrate deposition, and adjustable sample height to minimize the use of costly materials.

A motorized shutter enhances coating uniformity and purity by enabling controlled evaporation and deposition of most metals. Combined with programmable preheating and evaporation power settings, it provides precise process control.

The transparent quartz glass vacuum chamber helps reduce sample contamination and allows easy observation during operation. The rotating sample stage ensures consistent, even film deposition, making the system ideal for preparing a wide range of metal and organic thin films.

Features

  • Automatic process control on touch screen enabling repeatable coating quality
  • Quartz surrounding chamber minimizing the contamination
  • Precise temperature control with accuracy of ± 1Cº
  • Sample stageφ62, compatible withφ50 substrate
  • Working with both included mechanical pump (1Pa) or optional turbopump
  • Electric controlled shutter ensures high purity of coating layer
  • Rotatable sample stage guarantees uniform deposition thickness

Specifications

Rotary Thermal Evaporator Thermal Vapor Deposition Coater MNT-RTE-1600S

Control

7 inch touch screen, manual mode and automatic mode

Input power

110V, 60 HZ or 208-240V, 50HZ

Coating program

0-999S, 5 stage process programming; adjustable current and power; shutter control and rotation speed.

Sputtering Power

DC Thermal Evaporation

Max power

2000W

Output voltage and current

V12V; I100A

Sputtering Vacuum

30Pa

Shutter control

Electric

Vacuum chamber

Quartz and Stainless steel,  φ160xH160mm

Sample stage

φ62, compatible withφ50 substrate

Sample Stage Rotation speed

0-8 RPM

Evaporation crucible volume

70-135mm

Evaporation temperature

1800

Reserved vacuum ports

KF25 Exhaust Port, KF16 Release Port, 6mm Compression Fitting Inlet Port

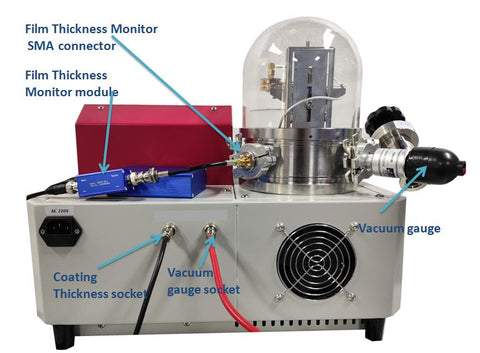

Vacuum gauge

Pirani vacuum gauge (Measuring range: 10E5Pa to 1E-1Pa)

Touch screen

7 inch

Shutter control

Electric

Vacuum reachable

Rotary pump1 Pa; molecular pump 0.005 Pa

Overall dimension

270×440×400mm

Vacuum port, Release valve, and air inlet

KF25 vacuum outlet, KF16 air release, 6mm air inlet

Mechanical Vacuum pump included

 Option for Molecular Pump

Input power

AC 110V/60HZ 400W or 220/50HZ

Displacement speed

60HZ: 1.3L/S (4.8M3/h); 50HZ: 1.1L/S (4M3/h)

Max vacuum

5X10-2 Pa

Noise

≤ 52dB

Control

Integrated with the main unit or stand alone

Flange

KF25, Adapters available upon request

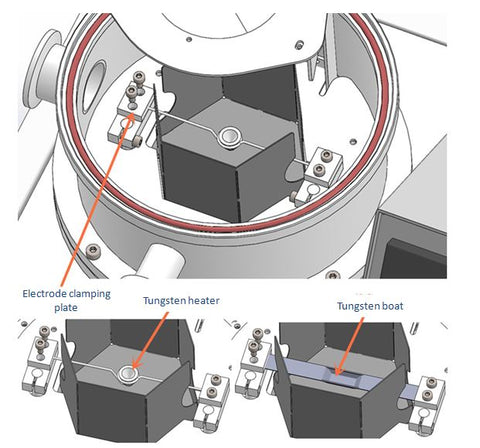

Heating mechanism of the MNT-TEC-1800 thermal evaporating coater:

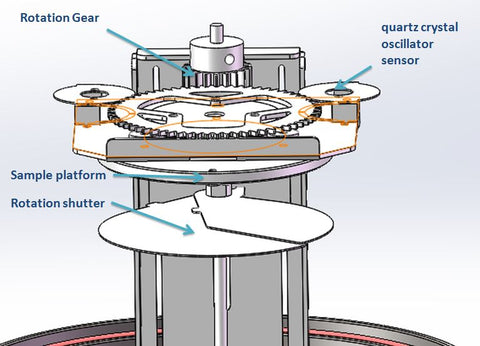

Rotatable platform, shutter, and quartz crystal oscillator sensor

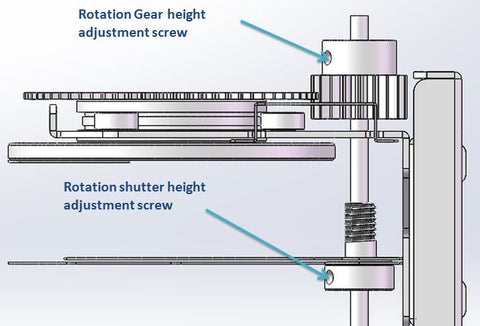

Adjustable height

Copper on Tungsten boat

Accessories

Five Tungsten boats are included in the package. Please contact us for more Tungsten boats, or other heaters, such as crucibles, tungsten bar et al..
